Products / Cobots / FAIRINO FR5-WML

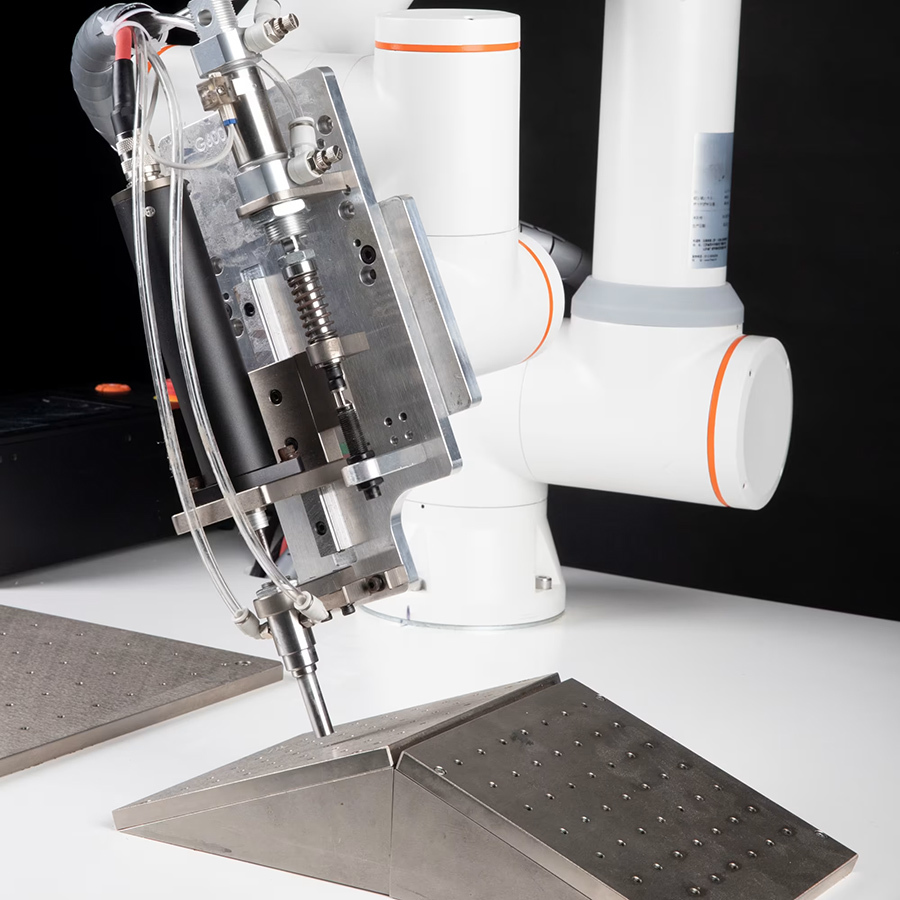

FAIRINO FR5-WML
- Class-leading 1300 mm reach for large-scale operations
- High TCP speed for fast cycle times
- Ideal for CNC tending and large-part handling
| fitness_center | Payload | 5 kg |
| straighten | Reach | 1300 mm |
| my_location | Repeatability | ±0.1 mm |
| scale | Weight | 45 kg |
| shield | IP Rating | IP 54 |
| crop_free | Footprint | Ø 190 mm |
| 360 | Degrees of Freedom | 6 DOF |
| speed | Max TCP Speed | 2 m/s |
| bolt | Power Consumption | 270 W |
| hearing | Noise Level | max. 65 dB |
| category | Materials | Aluminum, Steel |
| inventory_2 | Availability | In Stock |
Unrivaled Working Envelope
The FR5-WML stands out with a massive 1300 mm reach, providing one of the largest working envelopes in its payload class. This makes it uniquely suited for applications like CNC machine tending, where the cobot must reach deep into the machine tool from a safe distance.
Reach: 1300 mm
Speed Meets Accuracy
Capable of TCP speeds up to 2 m/s, the FR5-WML is built for productivity. Despite its long arm, it maintains steady performance with a repeatability of ±0.1mm, ensuring that even distant pick-and-place points are reached with precision.
TCP speed: 2 m/s
Robust Design for Demanding Tasks
At 45 kg, this cobot provides the stability required for long-reach movements. Its 190 mm footprint ensures a solid base for high-speed transitions, while the standard IP54 protection allows it to thrive in factory environments.
Footprint: Ø 190 mm
Applications for Fairino FR5-WML
The applications listed below represent typical scenarios in which collaborative robots deliver long-term economic and technological value.
factoryMaterial Production and Processing
Industrial Stability: All-metal construction handles high-torque grinding and high-heat welding Full Agility: WML variants offer 360 degree rotation on the 6th axis for complex pipes and curved surfaces Tactile Precision: Integration with 6-axis force sensors ensures constant pressure during polishing Smart Automation: Software supports real-time arc tracking and automatic weld seam recognition | addAdvantagesremoveLimits |
Compatible accessories
| scale | Weight | 3.6 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 89 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| scale | Weight | 2.1 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 44.5 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| keyboard_keys | Programmable Keys | 5 customizable hotkeys |
| precision_manufacturing | Typical Applications | Welding |
| school | User Level | Without programming skills |
| inventory_2 | Availability | Lead Time: 4 Weeks |
