Products / Cobots / FAIRINO FR3-WML

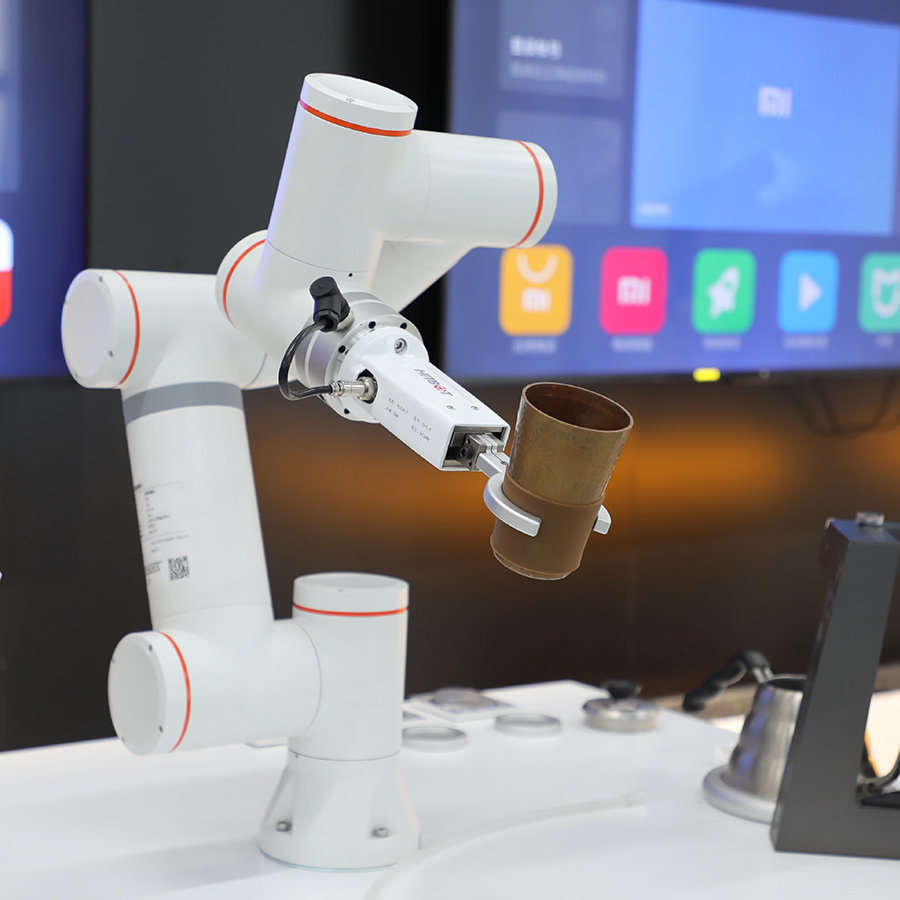

FAIRINO FR3-WML
- Extended reach for wide-area compact tasks
- Superior precision at long distances
- Lightweight build for flexible mounting
| fitness_center | Payload | 3 kg |
| straighten | Reach | 922 mm |
| my_location | Repeatability | ±0.05 mm |
| scale | Weight | 11.25 kg |
| shield | IP Rating | IP 54 |
| crop_free | Footprint | Ø 128 mm |
| 360 | Degrees of Freedom | 6 DOF |
| speed | Max TCP Speed | 1 m/s |
| bolt | Power Consumption | 140 W |
| hearing | Noise Level | max. 65 dB |
| category | Materials | Aluminum, Steel |
| inventory_2 | Availability | In Stock |
Exceptional Reach in a Slim Profile
The FR3-WML bridges the gap between small-scale cobots and long-reach industrial arms. With a reach of 922 mm and a 3 kg payload, it is designed for tasks that require navigating larger working envelopes while handling delicate components with a repeatability of ±0.05mm.
Reach: 922 mm
Optimized for Laboratory & Electronics
Its slender arm and extended reach make the FR3-WML ideal for laboratory automation, where it can easily reach across multiple testing stations or deep into storage racks. With a typical power consumption of 140W, it remains energy-efficient for 24/7 operations.
Repeatability: ± 0.05 mm
Versatile & Easy Deployment
Weighing just 11.25 kg, the FR3-WML can be easily mounted on walls or ceilings to save floor space. Like all Fairino cobots, it features intuitive control via a 10.1-inch teach pendant or web-based app, simplifying the programming of complex paths across its wide reach.
Average power: 140W
Applications for Fairino FR3-WML
The applications listed below represent typical scenarios in which collaborative robots deliver long-term economic and technological value.
factoryMaterial Production and Processing
Industrial Stability: All-metal construction handles high-torque grinding and high-heat welding Full Agility: WML variants offer 360 degree rotation on the 6th axis for complex pipes and curved surfaces Tactile Precision: Integration with 6-axis force sensors ensures constant pressure during polishing Smart Automation: Software supports real-time arc tracking and automatic weld seam recognition | addAdvantagesremoveLimits |
Compatible accessories
| scale | Weight | 3.6 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 89 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| scale | Weight | 2.1 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 44.5 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| scale | Weight | 490 g (Cable weight included) |
| crop_free | Dimensions | 136 × 60 × 66 mm |
| shield | IP Classification | IP54 |
| inventory_2 | Availability | In Stock |
