Products / Cobots / FAIRINO FR5

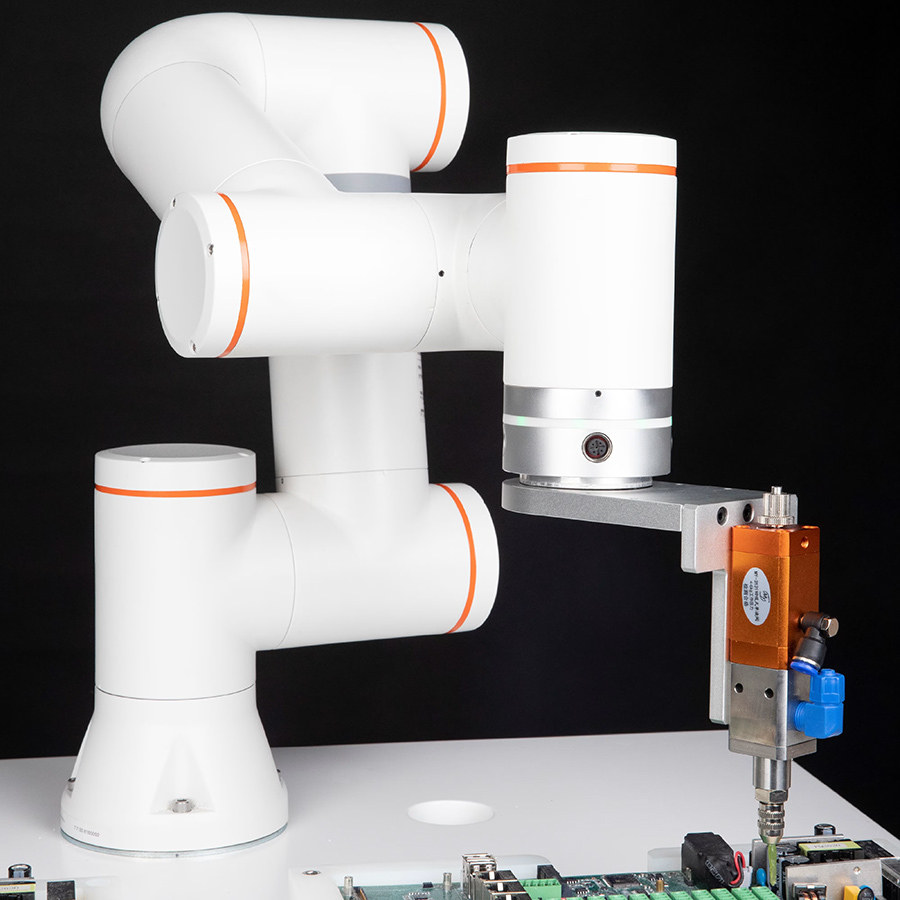

FAIRINO FR5
- Versatile performance for diverse industrial applications
- High-speed movement for increased productivity
- Robust build with a 5 kg (max 7 kg) payload
| fitness_center | Payload | 5 kg |
| straighten | Reach | 922 mm |
| my_location | Repeatability | ±0.02 mm |
| scale | Weight | 22 kg |
| shield | IP Rating | IP 54 |
| crop_free | Footprint | Ø 149 mm |
| 360 | Degrees of Freedom | 6 DOF |
| speed | Max TCP Speed | 1 m/s |
| bolt | Power Consumption | 260 W |
| hearing | Noise Level | max. 65 dB |
| category | Materials | Aluminum, Steel |
| inventory_2 | Availability | In Stock |
The Balanced Workhorse
The FR5 is the versatile powerhouse of the Fairino lineup, offering an optimal balance of 5 kg payload and 922 mm reach. It is engineered to excel in assembly, pick-and-place, and machine tending, providing the speed and reliability needed for high-volume production lines.
Payload: 5 kg
Precision Engineering for Quality
With a repeatability of ±0.02mm, the FR5 ensures consistent quality in every cycle. Its robust aluminum and steel construction is designed for longevity in industrial environments, supported by an IP54 rating (with IP65 optional) to protect against dust and liquids.
Repeatability: ± 0.02 mm
Intuitive Interaction & Safety
The FR5 integrates advanced collision detection, allowing it to work safely alongside human operators without the need for bulky safety cages. Its 6-DOF flexibility and 149 mm footprint allow it to be integrated into existing workstations with minimal modification.
Safety Level: PLd Cat 3
Applications for Fairino FR5
The applications listed below represent typical scenarios in which collaborative robots deliver long-term economic and technological value.

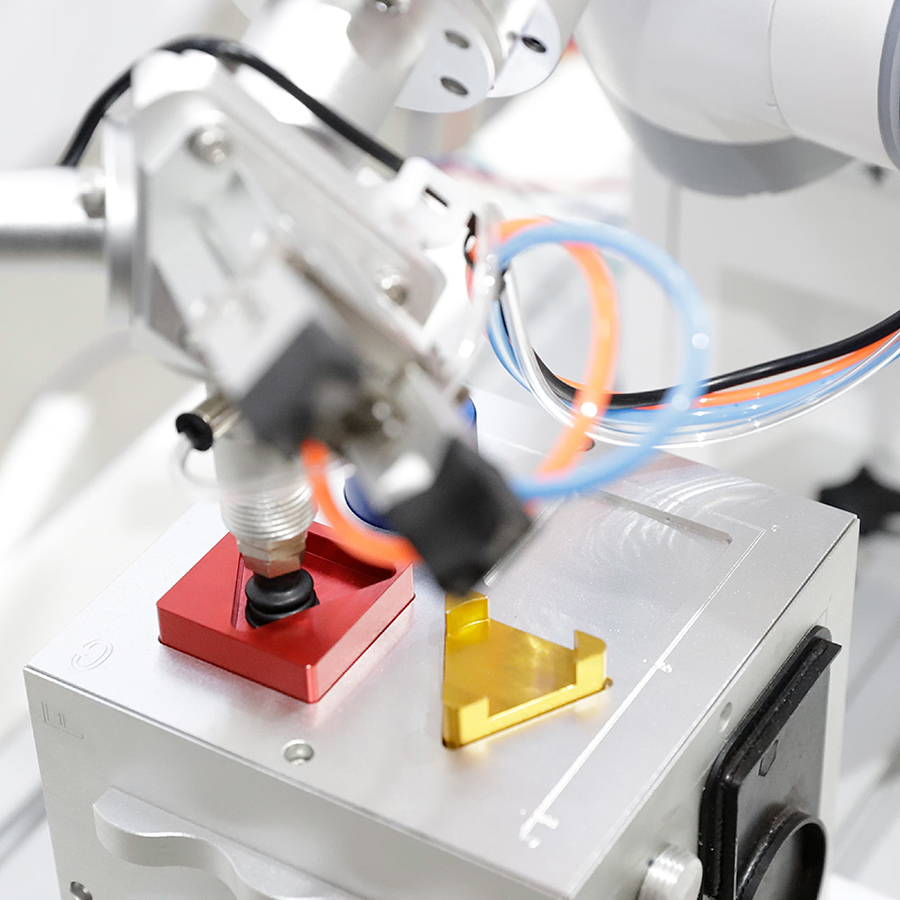

constructionAssembly and Fastening
Micro-Precision: Repeatability as fine as +/- 0.02 mm for high-accuracy assembly tasks Controlled Pressure: Force sensors ensure precise connector insertion and part seating Human-like Setup: Mirror versions allow for symmetrical dual-arm systems Critical Accuracy: Advanced torque control ensures perfect fastening for sensitive components | addAdvantagesremoveLimits |
Compatible accessories
| scale | Weight | 3.6 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 89 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| scale | Weight | 2.1 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 44.5 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| crop_free | Dimensions | 1472 × 840 × 1649 mm |
| aspect_ratio | Magnetic Base Size | 382 × 331 × 121 mm |
| touch_app | Operation Methods | Web-based Teach Pendant |
| inventory_2 | Availability | In Stock |
