Products / Cobots / FAIRINO FR10

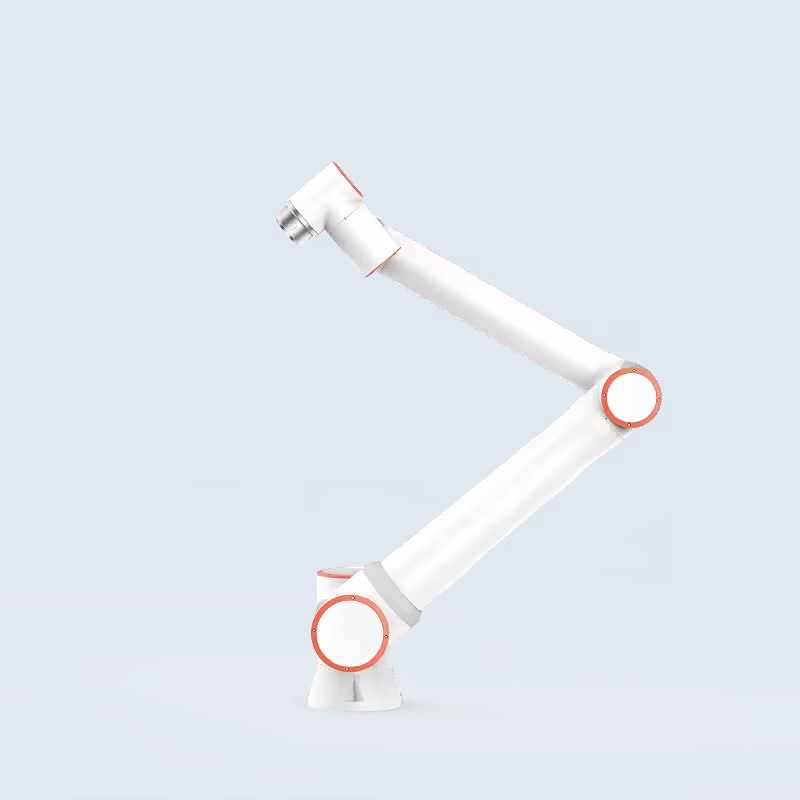

FAIRINO FR10
- 10 kg payload for heavy-duty assembly and packaging
- 1400 mm reach for palletizing and machine tending
- High-torque joints for stable handling
| fitness_center | Payload | 10 kg |
| straighten | Reach | 1380 mm |
| my_location | Repeatability | ±0.05 mm |
| scale | Weight | 40 kg |
| shield | IP Rating | IP 54 |
| crop_free | Footprint | Ø 190 mm |
| 360 | Degrees of Freedom | 6 DOF |
| speed | Max TCP Speed | 1.5 m/s |
| bolt | Power Consumption | 300 W |
| hearing | Noise Level | max. 65 dB |
| category | Materials | Aluminum, Steel |
| inventory_2 | Availability | In Stock |
Power for Increased Capacity
The FR10 is designed for tasks that require extra lifting power, offering a 10 kg standard payload with a maximum capacity of 14 kg. It is the ideal solution for packaging, palletizing, and handling heavier mechanical components that smaller cobots cannot manage.
Payload: 10 kg
Extended Reach for Logistics
With a 1400 mm reach, the FR10 can cover a full pallet or reach across wide conveyors. Its repeatability of ±0.05mm ensures that even when handling heavy loads at full extension, accuracy is never sacrificed.
Reach: 1400 mm
Section 3: Heavy-Duty Safety & Control
Despite its power, the FR10 remains a collaborative robot. It features sensitive force feedback to ensure safety in shared workspaces. The 300W typical power consumption makes it a cost-effective alternative to traditional industrial robots for medium-heavy tasks.
Safety Level: PLd Cat 3
Applications for Fairino FR10
The applications listed below represent typical scenarios in which collaborative robots deliver long-term economic and technological value.
precision_manufacturingMachine Tending
Universal Talk: Native support for EtherCAT, Modbus, and Profinet protocols 24/7 Operation: Enables "lights-out" manufacturing without human supervision Mobile Ready: Lightweight MT and C variants are optimized for AGV or AMR mobile platforms Rapid Changeover: Intuitive graphical programming allows for quick switching between workpieces | addAdvantagesremoveLimits |
inventory_2Logistics, Sorting, and Packaging
Maximized Range: Extended models like the FR20 provide up to 1854 mm of reach Fast Setup: Palletizing software allows configuration in under 10 minutes without coding Dynamic Picking: Real-time conveyor tracking picks items without stopping the line Heavy Stacking: The FR30 model supports heavy-duty tasks with a 30 kg capacity | addAdvantagesremoveLimits |
fact_checkQuality Control and Testing
3D Vision: Seamless integration with NANO-Pro systems for defect detection and sorting Tactile Testing: Force feedback enables functional testing of physical buttons, switches, and connectors Digital Traceability: Data aggregation via FR-CLOUD supports Industry 4.0 analysis Consistency: Sub-millimeter accuracy ensures uniform standards across thousands of units | addAdvantagesremoveLimits |
Compatible accessories
| scale | Weight | 3.6 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 89 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| scale | Weight | 2.1 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 44.5 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| crop_free | Dimensions | 1472 × 840 × 1649 mm |
| aspect_ratio | Magnetic Base Size | 382 × 331 × 121 mm |
| touch_app | Operation Methods | Web-based Teach Pendant |
| inventory_2 | Availability | In Stock |
