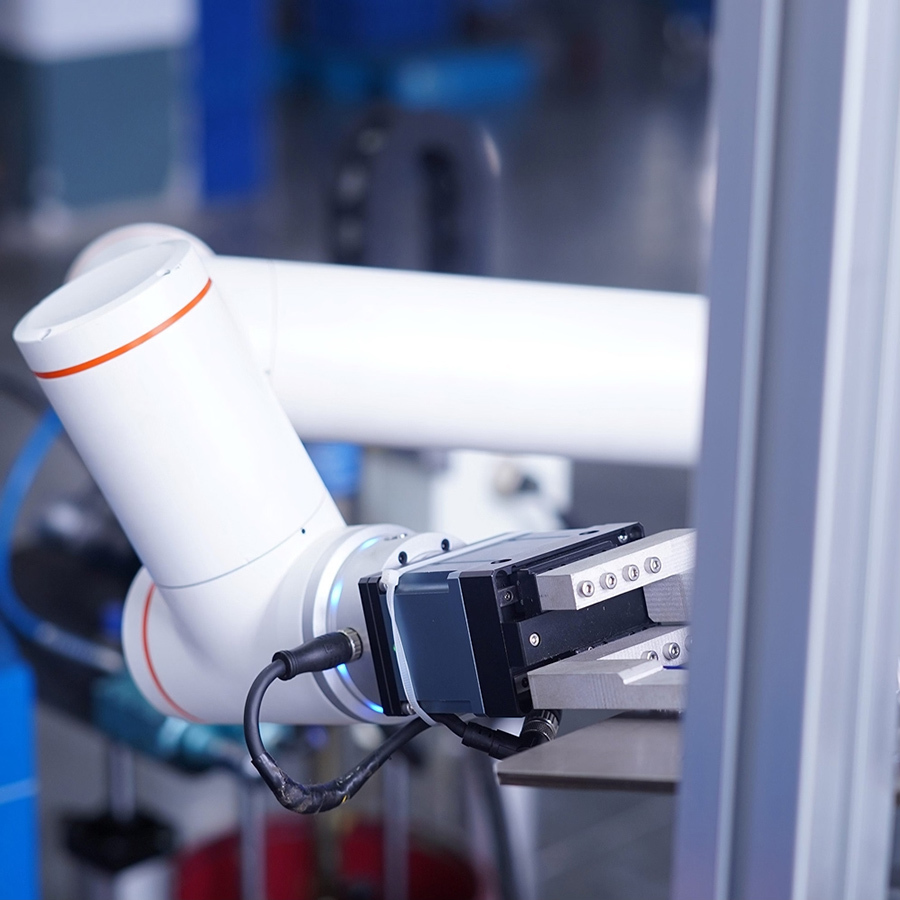

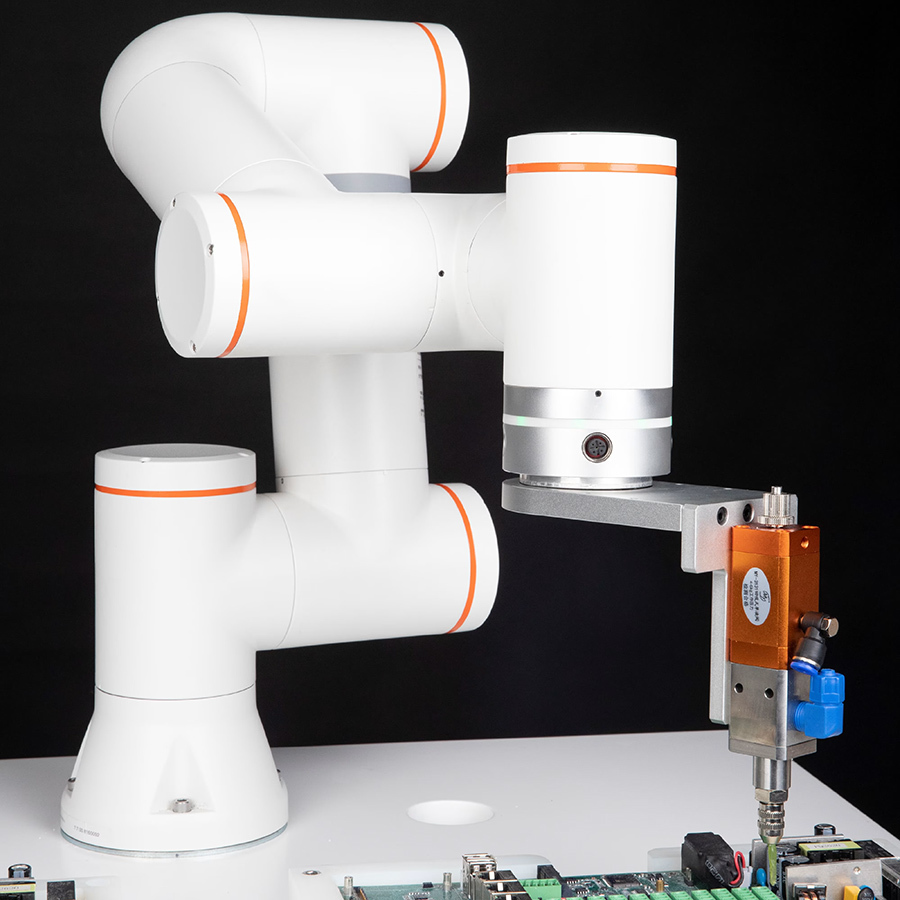

FAIRINO FR16
- High 16 kg payload capacity in a compact reach
- Ultra-precise repeatability for heavy-duty tasks
- Optimized for high-torque assembly and screwdriving
| fitness_center | Payload | 16 kg |
| straighten | Reach | 1034 mm |
| my_location | Repeatability | ±0.03 mm |
| scale | Weight | 40 kg |
| shield | IP Rating | IP 54 |
| crop_free | Footprint | Ø 190 mm |
| 360 | Degrees of Freedom | 6 DOF |
| speed | Max TCP Speed | 1 m/s |
| bolt | Power Consumption | 310 W |
| hearing | Noise Level | max. 65 dB |
| category | Materials | Aluminum, Steel |
| inventory_2 | Availability | In Stock |
Compact Strength
The FR16 is engineered for applications requiring high payload (16 kg, max 20 kg) within a more concentrated 1034 mm reach. This makes it the perfect choice for heavy assembly tasks where torque and lifting capacity are more critical than long-distance reach.
Payload: 16 kg
Precision Under Pressure
With an impressive repeatability of ±0.03mm, the FR16 provides industrial-grade accuracy for heavy-part handling. It excels in applications like heavy-duty screwdriving, part insertion, and precision welding where stability is paramount.
Repeatability: ± 0.03 mm
Space-Efficient Industrial Power
The 190 mm footprint allows the FR16 to be installed in tight production cells where traditional heavy robots wouldn't fit. Its ability to operate in any orientation adds further flexibility to complex manufacturing layouts.
Power Supply: DC 48V / AC 220V
Applications for Fairino FR16
The applications listed below represent typical scenarios in which collaborative robots deliver long-term economic and technological value.
precision_manufacturingMachine Tending
Universal Talk: Native support for EtherCAT, Modbus, and Profinet protocols 24/7 Operation: Enables "lights-out" manufacturing without human supervision Mobile Ready: Lightweight MT and C variants are optimized for AGV or AMR mobile platforms Rapid Changeover: Intuitive graphical programming allows for quick switching between workpieces | addAdvantagesremoveLimits |
factoryMaterial Production and Processing
Industrial Stability: All-metal construction handles high-torque grinding and high-heat welding Full Agility: WML variants offer 360 degree rotation on the 6th axis for complex pipes and curved surfaces Tactile Precision: Integration with 6-axis force sensors ensures constant pressure during polishing Smart Automation: Software supports real-time arc tracking and automatic weld seam recognition | addAdvantagesremoveLimits |
Compatible accessories
| scale | Weight | 3.6 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 89 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| scale | Weight | 2.1 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 44.5 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| crop_free | Dimensions | 1472 × 840 × 1649 mm |
| aspect_ratio | Magnetic Base Size | 382 × 331 × 121 mm |
| touch_app | Operation Methods | Web-based Teach Pendant |
| inventory_2 | Availability | In Stock |
