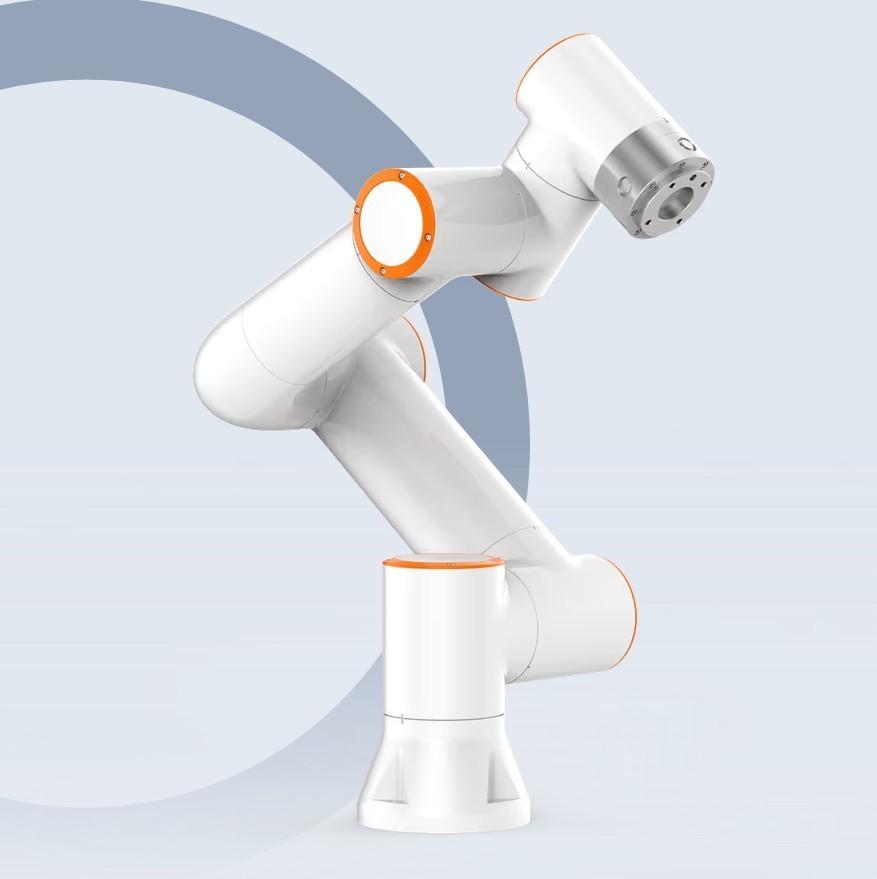

Application of Fairino Collaborative Robots in Industry

Fairino collaborative robots are engineered for seamless integration into modern industrial production. They excel in repetitive and ergonomically demanding operations where consistent quality, safety, and flexibility are essential.

view Applications get a Consultation

Overview of Industrial Applications

The applications listed below represent typical scenarios in which collaborative robots provide long-term economic and technological value.

fact_checkQuality Control and Testing

3D Vision: Seamless integration with NANO-Pro systems for defect detection and sorting

Tactile Testing: Force feedback enables functional testing of physical buttons, switches, and connectors

Digital Traceability: Data aggregation via FR-CLOUD supports Industry 4.0 analysis

Consistency: Sub-millimeter accuracy ensures uniform standards across thousands of units

addAdvantages

Integrated sensing technology provides non-stop quality assurance and digital data logging.

removeLimits

Performance depends on external vision processing power and environmental stability.

inventory_2Logistics, Sorting, and Packaging

Maximized Range: Extended models like the FR20 provide up to 1854 mm of reach

Fast Setup: Palletizing software allows configuration in under 10 minutes without coding

Dynamic Picking: Real-time conveyor tracking picks items without stopping the line

Heavy Stacking: The FR30 model supports heavy-duty tasks with a 30 kg capacity

addAdvantages

Extended reach and dedicated software simplify the deployment of palletizing and sorting stations.

removeLimits

Throughput is affected by vertical reach constraints and collaborative safety protocols.

precision_manufacturingMachine Tending

Universal Talk: Native support for EtherCAT, Modbus, and Profinet protocols

24/7 Operation: Enables "lights-out" manufacturing without human supervision

Mobile Ready: Lightweight MT and C variants are optimized for AGV or AMR mobile platforms

Rapid Changeover: Intuitive graphical programming allows for quick switching between workpieces

addAdvantages

Open-source software and universal connectivity enable 24/7 integration with diverse industrial controllers.

removeLimits

Heavy components and harsh cooling environments require specific hardware configurations.

constructionAssembly and Fastening

Micro-Precision: Repeatability as fine as +/- 0.02 mm for high-accuracy assembly tasks

Controlled Pressure: Force sensors ensure precise connector insertion and part seating

Human-like Setup: Mirror versions allow for symmetrical dual-arm systems

Critical Accuracy: Advanced torque control ensures perfect fastening for sensitive components

addAdvantages

High repeatability and sensitive force detection enable the automation of fragile electronics and complex mechanical parts.

removeLimits

Viability is influenced by cycle time requirements and the robot's physical reach.

factoryMaterial Production and Processing

Industrial Stability: All-metal construction handles high-torque grinding and high-heat welding

Full Agility: WML variants offer 360 degree rotation on the 6th axis for complex pipes and curved surfaces

Tactile Precision: Integration with 6-axis force sensors ensures constant pressure during polishing

Smart Automation: Software supports real-time arc tracking and automatic weld seam recognition

addAdvantages

These processes combine high-grade mechanical durability with specialized software for complex motion control.

removeLimits

Operation is governed by physical payload limits and specific environmental protection needs.

Fairino Collaborative Robots in Real-World Operation

The following examples come from manufacturing facilities in the Czech Republic, where Fairino collaborative robots are deployed in continuous operation, performing specific production tasks.
