Products / Cobots / FAIRINO FR20

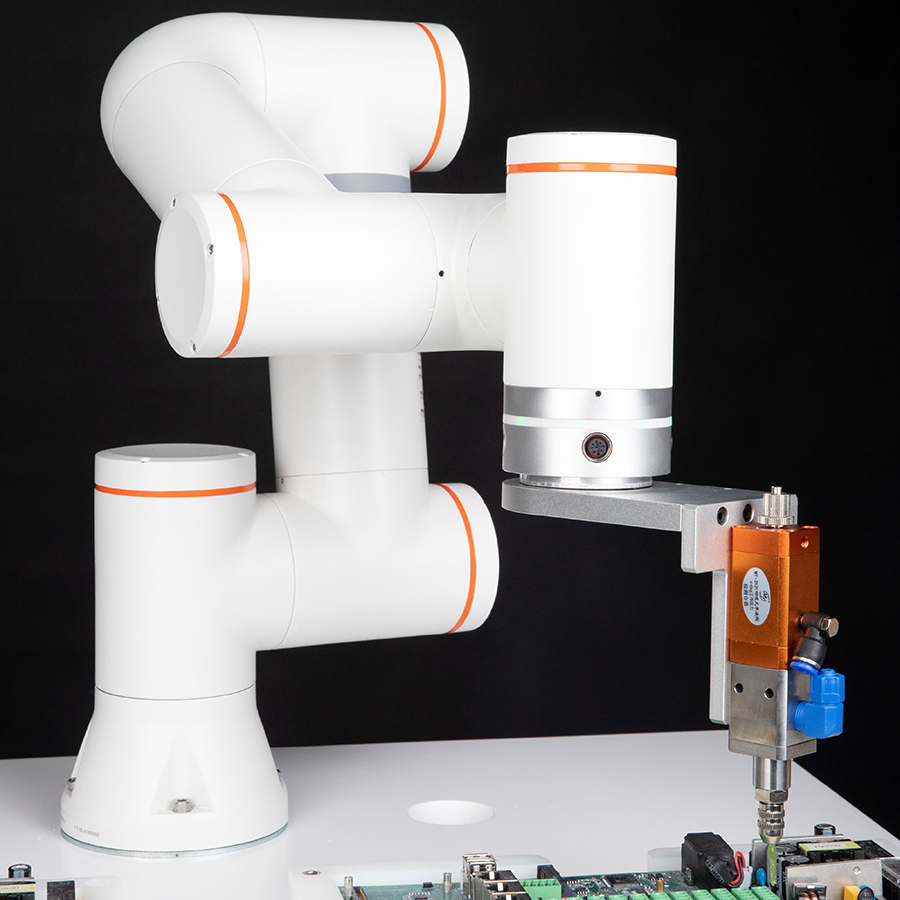

FAIRINO FR20
- Massive 1854 mm reach for large-scale automation
- 20 kg payload for heavy palletizing and logistics
- Superior stability for high-speed, high-load cycles
| fitness_center | Payload | 20 kg |
| straighten | Reach | 1854 mm |
| my_location | Repeatability | ±0.1 mm |
| scale | Weight | 105 kg |
| shield | IP Rating | IP 54 |
| crop_free | Footprint | Ø 250 mm |
| 360 | Degrees of Freedom | 6 DOF |
| speed | Max TCP Speed | 2 m/s |
| bolt | Power Consumption | 620 W |
| hearing | Noise Level | max. 70 dB |
| category | Materials | Aluminum, Steel |
| inventory_2 | Availability | In Stock |

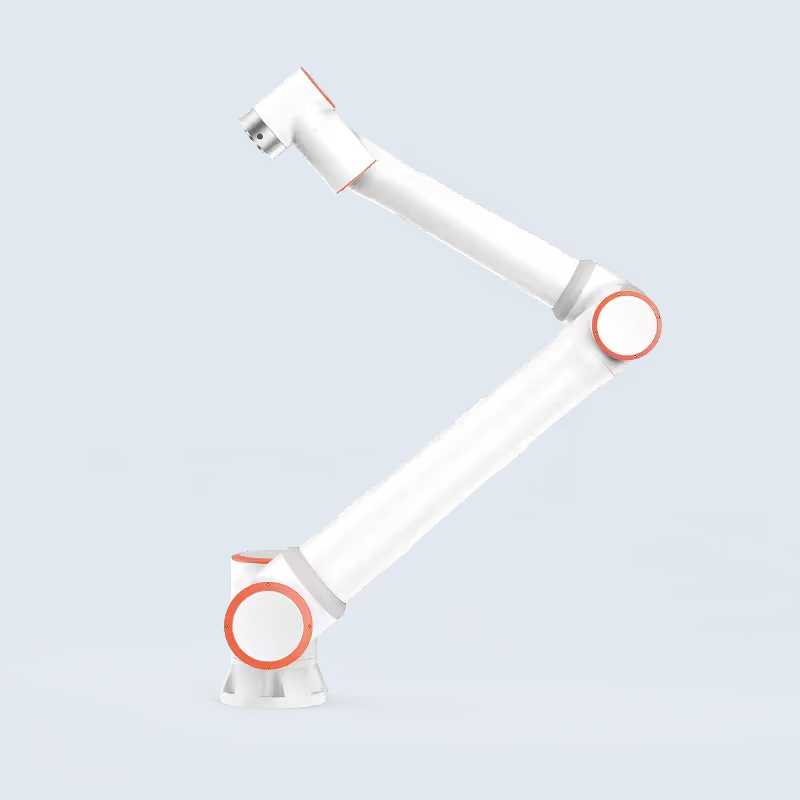

Dominating the Workspace
The FR20 is the largest cobot in the Fairino family, boasting an incredible reach of 1854 mm. Combined with a 20 kg payload (max 25 kg), it is specifically designed to replace traditional industrial robots in large-scale palletizing, material handling, and wide-area welding.
Reach: 1854 mm
High-Performance Throughput
With TCP speeds of up to 2 m/s, the FR20 is built for speed. It allows for rapid palletizing cycles, significantly increasing throughput in logistics and end-of-line packaging operations while maintaining a repeatability of ±0.1mm.
TCP speed: 2 m/s
Industrial Scale, Collaborative Safety
At 105 kg, the FR20 provides the mass and stability needed for its impressive reach. Like its smaller siblings, it remains fully collaborative, featuring advanced safety systems that allow it to operate safely near humans, even when handling substantial loads.
Weight: ≈ 105 kg
Applications for Fairino FR20
The applications listed below represent typical scenarios in which collaborative robots deliver long-term economic and technological value.
inventory_2Logistics, Sorting, and Packaging
Maximized Range: Extended models like the FR20 provide up to 1854 mm of reach Fast Setup: Palletizing software allows configuration in under 10 minutes without coding Dynamic Picking: Real-time conveyor tracking picks items without stopping the line Heavy Stacking: The FR30 model supports heavy-duty tasks with a 30 kg capacity | addAdvantagesremoveLimits |

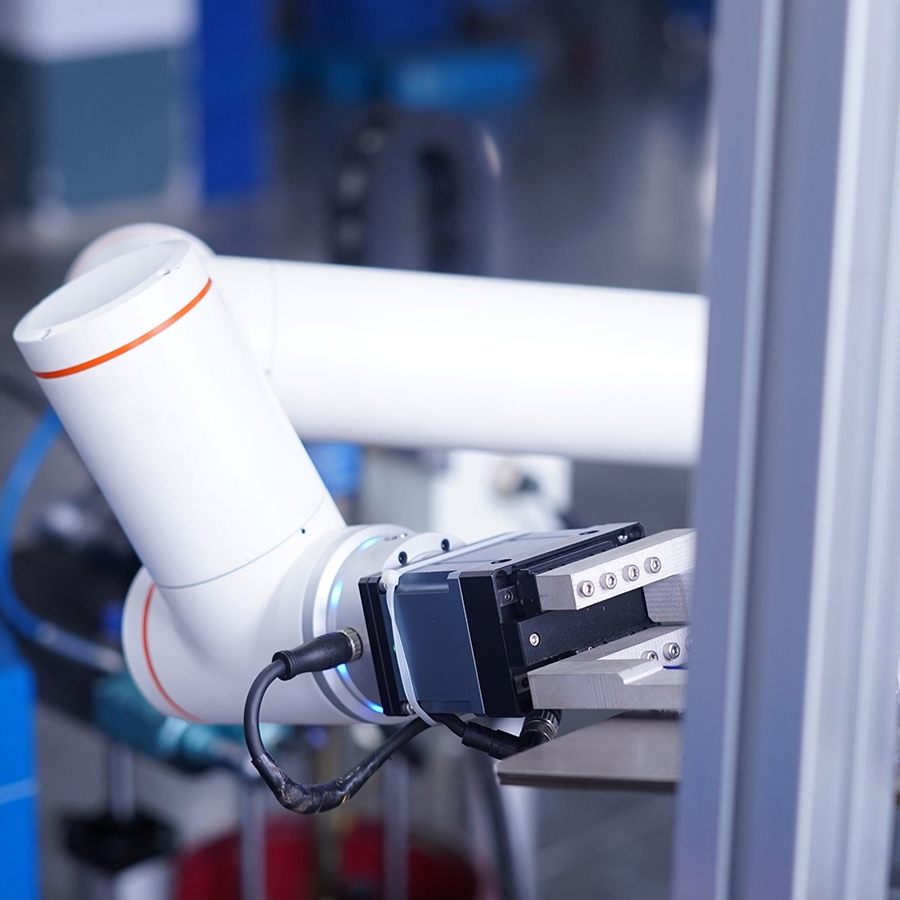

precision_manufacturingMachine Tending
Universal Talk: Native support for EtherCAT, Modbus, and Profinet protocols 24/7 Operation: Enables "lights-out" manufacturing without human supervision Mobile Ready: Lightweight MT and C variants are optimized for AGV or AMR mobile platforms Rapid Changeover: Intuitive graphical programming allows for quick switching between workpieces | addAdvantagesremoveLimits |
Compatible accessories
| scale | Weight | 3.6 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 89 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| scale | Weight | 2.957 kg (without wire) |
| crop_free | Dimensions | 245 × 180 × 89 mm |
| bolt | Power Supply | 24 V / 1.5 A |
| inventory_2 | Availability | In Stock |
| scale | Weight | 330 kg (excluding robot) |
| crop_free | Dimensions | 1200 × 1100 mm |
| bolt | Power Supply | 110–240 VAC |
| inventory_2 | Availability | In Stock |
