Gripper EPG40-050

Products / Accessories / Gripper EPG40-050

GRIPPER EPG40-050

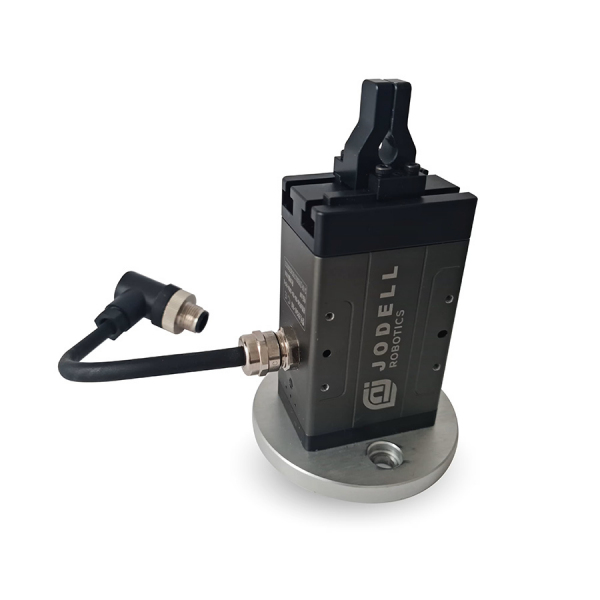

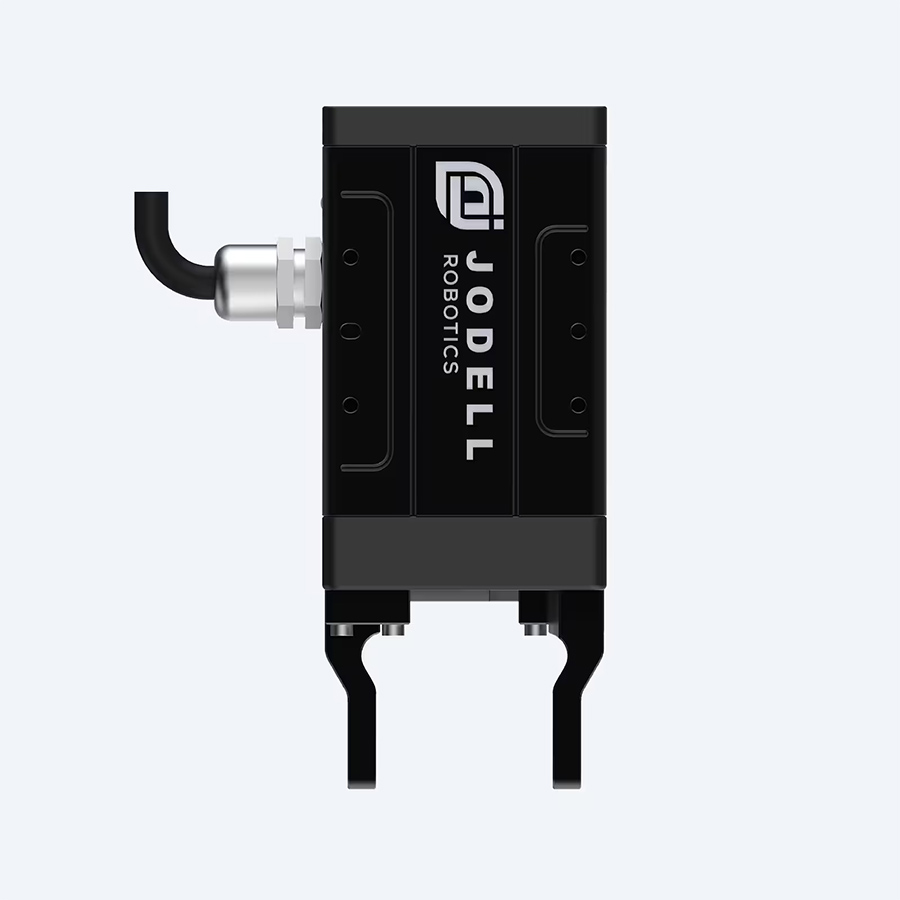

The EPG40-050 Gripper is a compact electric gripper designed for precise and reliable handling applications. It features an adjustable stroke of 0-40 mm and a single finger gripping force of 2-50 N, with excellent repeatability of ±0.02 mm. The opening and closing time is 0.5 seconds, and the maximum recommended load is 0.8 kg. With compact dimensions of 40 × 24 × 87 mm and a weight of just 360 g, the gripper is ideal for space-constrained installations. It is rated IP40 and operates in environments from 5 to 40 °C with humidity below 85% RH. The EPG40-050 supports Modbus RTU (RS485) and Digital I/O communication and is certified according to CE and RoHS standards.

Quick inquiry
scaleWeight360 g
crop_freeDimensions40 × 24 × 87 mm
shieldIP ClassificationIP40
scheduleDelivery Time25 working days
settings_input_componentCommunication InterfaceModbus RTU (RS-485), Digital I/O
inventory_2AvailabilityOn Request
